In the field of packaging automation, standard top and bottom case sealers satisfy most conventional requirements. However, for heavy, high-value products or those facing long-distance and turbulent transportation, the strength of standard sealing is often insufficient. This is precisely where the Side Sealer emerges as a strategic asset, ensuring shipping safety and minimizing damage rates. It is far more than just a sealer; it is a proactive packaging reinforcement system.

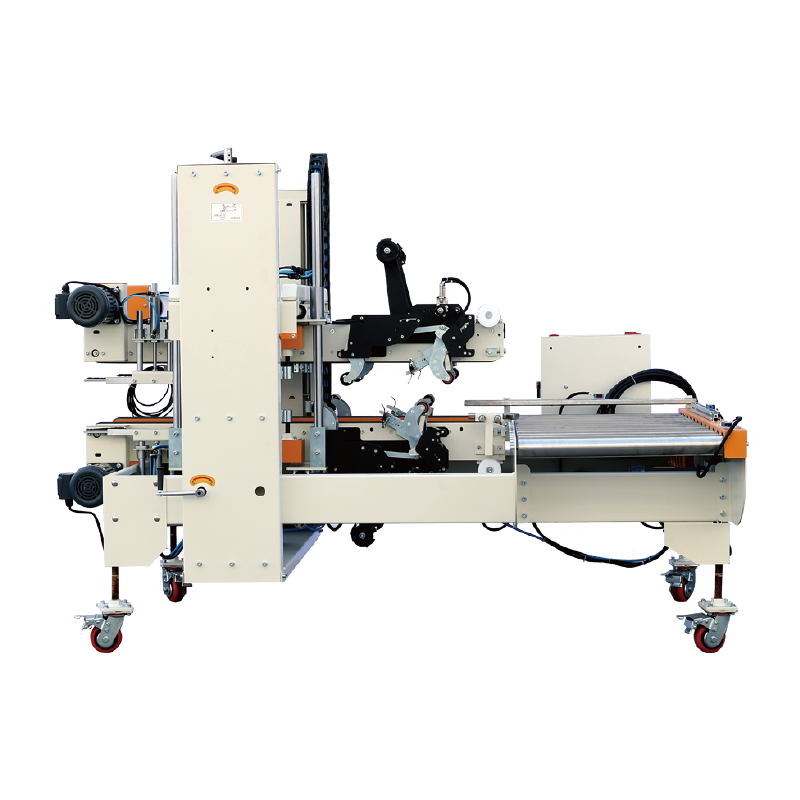

A Side Sealer is a specialized automated machine. Its primary function is to apply additional tape or hot melt adhesive to the side seams or designated corners of a shipping case for lateral reinforcement. Typically, it does not replace standard top/bottom sealing but serves as a supplementary reinforcement step. It operates in-line with a standard case sealer, forming a complete "bottom seal → load → top seal → side reinforcement" workflow.
Core Value Proposition: By adding lateral binding force perpendicular to the main stress direction of the case, it significantly enhances the complete box's Stacking Compression Strength (BCT)and overall structural integrity. This effectively prevents case splitting, bulging, or deformation caused by shifting and compression during transit.
The Side Sealer utilizes a precision system of guiding, application, and pressing mechanisms to perform accurate reinforcement on high-speed production lines.
Typical Workflow:
1. Conveying and Positioning: A case with standard seals is conveyed into the machine and precisely positioned via photoelectric sensors or mechanical stops.
2. Side Cleaning and Smoothing (Optional): Advanced models may feature brushes or air jets to clean and smooth the application surface, ensuring optimal adhesive bonding.
3. Tape Cutting and Application: The machine dispenses a pre-set length of tape, applying it smoothly and tightly to the specified side location(s) through a press roller system.
4. Compression and Strengthening: Heavy-duty compression rollers immediately apply firm pressure to the tape, ensuring complete contact with the corrugated surface, eliminating air pockets, and maximizing bond strength.
5. Discharge: The reinforced case is conveyed to the next station, such as a labeler or palletizing area.
Unique Advantages Compared to Standard Sealing:
• Increases Compression Strength by 30% or More: The lateral reinforcement acts like a "reinforcing rib," distributing vertical load—this is its most critical value.
• Effectively Prevents Bursting and Leakage: Ideal for powdered, granular products, or items with sharp edges, preventing spillage from seams or box punctures.
• Enhances Professional Brand Image: Reinforced cases present a stronger, neater, and more reliable appearance, which is crucial for products like high-end appliances and industrial components.
• Withstands Demanding Logistics Environments: The optimal solution for challenging scenarios like e-commerce fulfillment, cross-border shipping, and complex intermodal transport.
A high-performance Side Sealer should possess the following key features to meet diverse production demands:
1. Reinforcement Position and Quantity
• Configuration Options: Can be flexibly configured for single-side, double-side, or "L"-shaped corner sealing based on protection needs.
• Number of Reinforcement Strips: Depending on product weight and case strength, 1 or 2reinforcement strips can be applied to achieve the required compression resistance.
2. Sealing Materials
• Standard Option: High-strength transparent or kraft paper tape. This solution is cost-effective and meets most reinforcement needs.
• Premium Option: A hot melt adhesive system provides the flattest finish and the highest bond strength, especially suitable for applications with stringent aesthetic and durability requirements.
3. Case Size Adaptability
• Adjustment Range: The machine offers a wide adjustable range to accommodate various sizes, from small parcels to large industrial boxes.
• Adjustment Method: Quick changeover for different box sizes is achieved by electric or manual adjustment of guide rail spacing and application head height.
4. Line Speed Synchronization
• Synchronization Requirement: The machine must seamlessly synchronize with the speed of the upstream main sealing line to avoid becoming a production bottleneck.
• Typical Range: The standard design matches line speeds typically ranging from 15 to 40 cases per minute.
5. Intelligent Control System
• Control Core: Utilizes a PLC control system to ensure stable and reliable operation.
• Operator Interface: Equipped with a touchscreen HMI (Human-Machine Interface) capable of storing multiple product parameter recipes, enabling one-touch changeover of production tasks to improve operational efficiency and flexibility.
Choosing us means acquiring not just equipment, but a complete reinforcement packaging solution built on profound industry expertise.
1. In-Depth Process Analysis and Customization Capability
We do not merely sell standard machines. Our engineers first conduct a thorough analysis of your product characteristics (weight, shape), carton design, existing transit damage data, and supply chain challenges. This allows us to determine the necessity for side reinforcement, identify the optimal application position (side seam vs. corner), and specify the required strength, ultimately recommending the most cost-effective, customized solution for your needs.
2. Proprietary Application Technology and Superior Reliability
We employ an active servo-driven application system coupled with a heavy-duty constant-pressure compression mechanism. This ensures "zero-air-bubble," perfect tape adhesion on various box surfaces, including laminated or rough finishes. Core components sourced from internationally renowned brands guarantee durable and stable operation under demanding 24/7 conditions, delivering an industry-leading Mean Time Between Failures (MTBF).
3. Seamless Integration and Future Scalability
Our Side Sealer is designed with standard mechanical interfaces and communication protocols (e.g., Modbus TCP/IP), allowing for easy integration into any existing packaging line and minimizing retrofit downtime. The modular design also facilitates future upgrades, such as switching to a hot melt system or integrating vision inspection to verify tape application.
The ultimate goal of packaging is to ensure products arrive safely and intact. A major shipping failure damages not only the product but also customer trust and brand reputation.
We invite you to contact our Packaging Reinforcement Solutions team today.
To help us provide the most relevant assessment, please consider sharing:
1. Samples or photographs of your product.
2. Your current carton specifications and the specific transit damage challenges you are encountering.
3. An overview or video of your existing packaging line operation.
In return, we will provide you with:
• A complimentary Packaging and Transit Safety Assessment Report, quantifying the expected improvements before and after reinforcement.
• A targeted online product demonstration and detailed solution walkthrough.
• A clear Return on Investment (ROI) analysis, ensuring your investment delivers tangible and measurable value.
Let's collaborate to minimize transit risks. Together, we can use reliable, reinforced packaging to protect your products and uphold your brand's good name.
